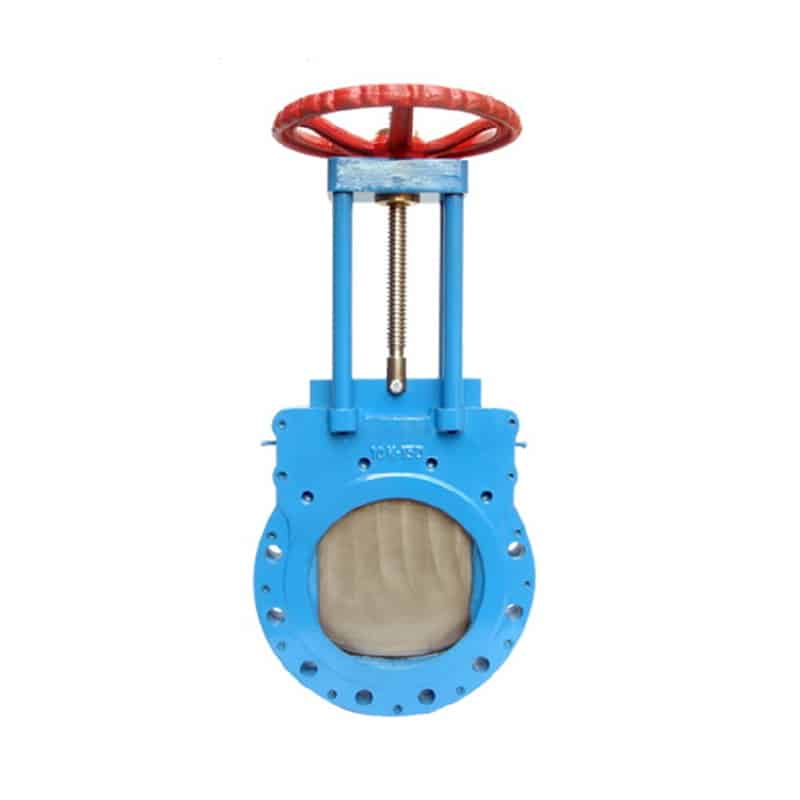

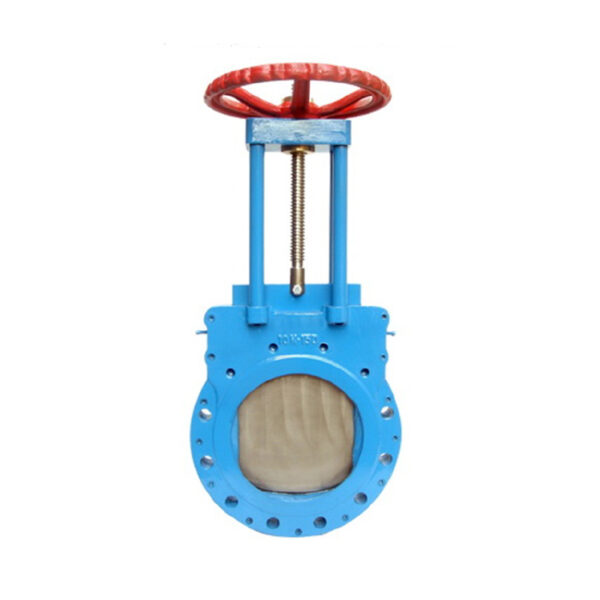

TNG-20

KNIFE GATE VALVE
DESIGN FEATURE

– Heavy gate with wide spaced clevis
– PTFi: or EPDM resilient seat
– Full port one piece cast body with resilient seat
– Drip tight shut-off In both directions
– Wafer pattem drill and tapped to suit ANSI dass, PN 10, PN 16, and JIS 10k flanges
– Easy bolt-on conversion to actuator or worm gear operator or pneumatic cylinder actuator or electric actuator
